Tractor PTO Shaft Replacement: Step-by-Step

Tractor PTO shaft replacement is one of those jobs that looks like a straightforward parts swap right up until you’re standing at the counter with the wrong shaft in your hand. With dealer labor running north of $200 an hour and more farmers handling their own maintenance than at any point in recent memory, the cost of getting this wrong has gone up. This article covers what you need to know before you order — the series system, the length rules, and the mistake that turns a $90 part into a blown gearbox.

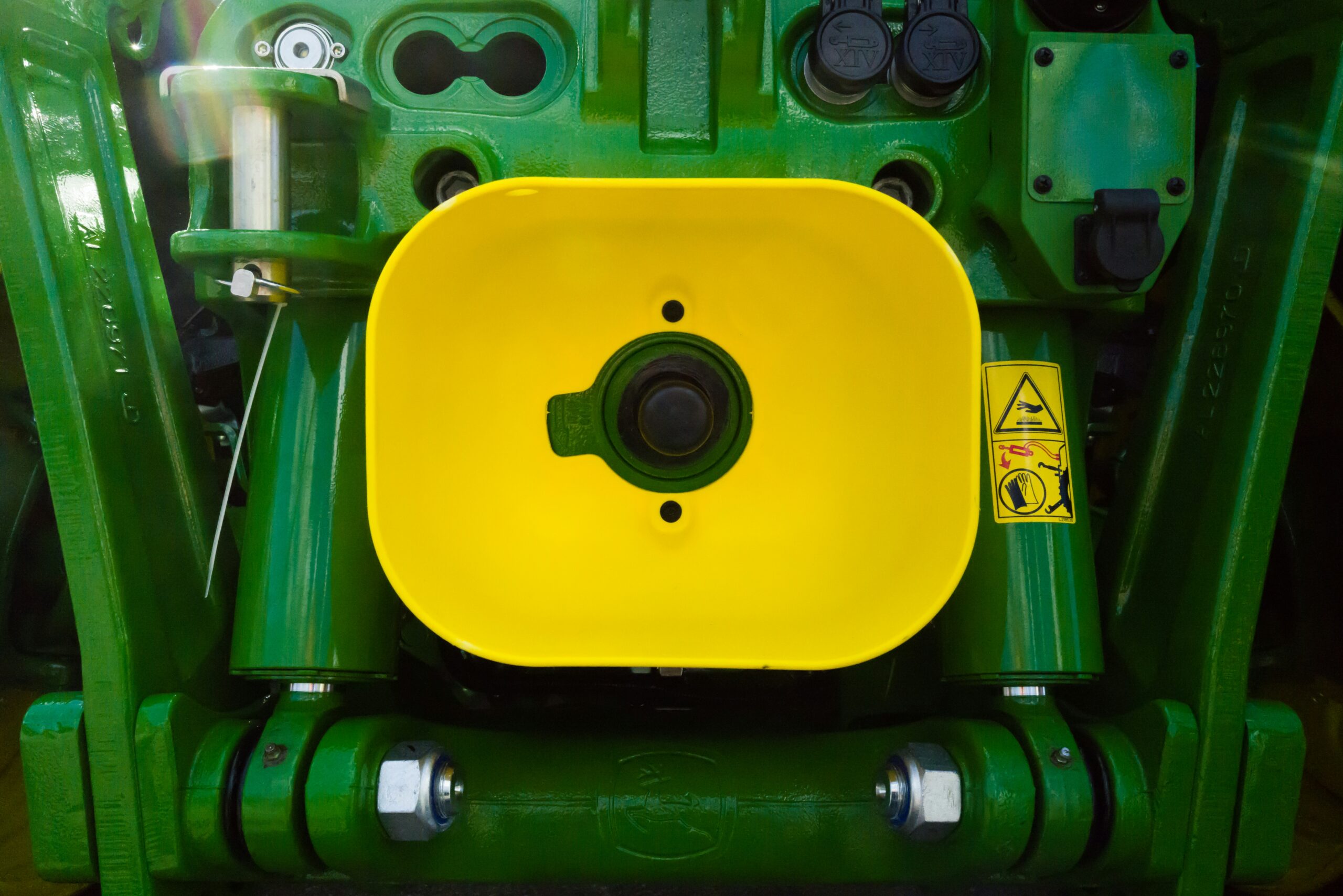

Why Tractor PTO Shaft Replacement Happens More Than You’d Think

Most people don’t replace a PTO shaft because something shattered. They replace it because they picked up a used implement — a tiller, a finish mower, a post-hole digger — and the previous owner had already cut the shaft down to fit a different tractor. Or the guard is cracked and dragging. Or the U-joints are worn enough that there’s a noticeable clunk every time the PTO engages under load. If your PTO has stopped engaging entirely or keeps cutting out mid-job, that’s a different problem — we covered the diagnosis side in the tractor PTO problems guide.

A thread on GreenTractorTalk is a perfect real-world example: a farmer bought a like-new CountyLine tiller for his 1025R, power-washed it, and discovered the previous owner had cut the shaft down six inches on both the inner and outer tube to fit a Ford 9N. That’s a replacement job, whether he planned for it or not.

Bent shafts from hitting stumps or rocks always mean a full tractor PTO shaft replacement — never try to straighten one. If the telescoping section is stuck and won’t slide, hit the gap between the inner and outer tubes with PB Blaster and let it soak before you force anything.

Getting the PTO Shaft Series Right Before You Buy

This is where the most costly tractor PTO shaft replacement mistake lives. PTO shafts are categorized by series numbers — Series 1 through 6 and beyond — and the series determines how much torque the shaft can safely handle through its U-joint size. A larger series number means a bigger, stronger joint. On compact and utility tractors, you’re almost always working in the Series 1–4 range at 540 RPM with a 1-3/8″ 6-spline connection on the tractor end.

The danger of undersizing isn’t in normal operation — it’s in shock loads. A Series 1 shaft spinning a finish mower will handle routine work just fine. Hit a buried stump at the wrong angle, and the spike in torque has to go somewhere. If the shaft is undersized, the U-joint goes instead of the overload protection, and the implement gearbox takes the damage. Size your shaft to your tractor’s PTO horsepower — not engine horsepower — and when you’re in between series, go one size up.

To identify what you have: check the plastic guard cover for any stamped or molded markings — manufacturers often put the series right there. If the guard is gone, measure the U-joint cap diameter. Most joints have a serial number stamped on them directly. Weasler also has an interactive series finder on its site that lets you input your measurements and confirms the right replacement.

How to Measure a PTO Shaft Replacement So You Don’t Wreck Your Gearbox

Length is where most DIY PTO shaft replacements go sideways, and it goes wrong in both directions. Too short and the shaft separates under load or at full hitch extension. Too long and it bottoms out when you raise the three-point hitch, which forces that pressure straight into the tractor PTO output or the implement gearbox — neither of which is a cheap fix.

The right process: connect the implement, set everything in a straight line on level ground, and measure from yoke groove to yoke groove with the shaft collapsed. Then cycle the hitch through its full range — all the way up, all the way down — and check your clearances at both extremes. You need at least 6 inches of tube overlap when fully extended, and at least 1 inch of clearance before the shaft bottoms out at full hitch raise.

Farmers on OrangeTractorTalks debate 4 inches versus 6 inches of overlap pretty regularly. Experienced operators and most implement manufacturers land on 6 inches as the safe minimum — that’s the number to build to.

When you cut a new shaft to fit, cut both the inner and outer tubes equally. Then trim the plastic safety guard to match. Skipping that last step isn’t just sloppy — it leaves gaps in the guarding that turn into a snag point.

OEM vs. Aftermarket: The Real Price Difference on a PTO Shaft Replacement

OEM shafts from Kubota run $150–$250 for compact models. John Deere assemblies can reach $250–$400. For most tractor PTO shaft replacements on compact and utility machines, quality aftermarket brands — Weasler, Euro-Cardan, Bare-Co — typically land at $60–$150 for the same job, and in real-world field use, the performance difference is minimal for standard applications.

The caveat is shock-load work. For implements that regularly hit obstacles — tillers in rocky ground, post-hole diggers, rotary cutters in brushy fields — buy a named brand. No-name imports from Amazon handle routine work but tend to fail at the U-joint when the load spikes. Farmers on TractorByNet consistently point out that TSC marks PTO shaft prices up significantly compared to what you’d pay at Agri Supply or Shoup online for the same Weasler shaft — worth checking before you drive to the store.

How to Replace a Tractor PTO Shaft the Right Way

Once you have the right shaft in hand, a tractor PTO shaft replacement runs 30–60 minutes on a compact or utility tractor. Here’s the procedure, in order.

Step 1: Park on level ground, shut off the engine, and remove the key. Wait for the stub shaft to stop completely. Do not rush this. The PTO stub keeps spinning after you disengage — give it 30–60 seconds.

Step 2: Disconnect the old shaft. On the tractor end, pull back the spring-loaded locking collar and slide the yoke off the stub shaft. On the implement end, remove the retaining pin or release the locking mechanism. If the telescoping section is seized from rust, soak the gap between the inner and outer tubes with PB Blaster before forcing anything.

Step 3: Confirm your spline spec before installing the new shaft. According to TractorData.com’s PTO standards, there are three types in common use:

The vast majority of compact and utility tractor owners — Kubota B-series, John Deere 1 and 2 Series, Kioti CK series — are running Type 1: 1-3/8″ diameter, 6-spline, 540 RPM. If your tractor manual says anything different, follow the manual. A spline mismatch that looks close enough to force will strip the stub shaft.

Step 4: Cut the new shaft to length if needed. Mark the cut point, then cut both the inner and outer tubes equally with a hacksaw or angle grinder. Deburr the cut ends so they don’t chew up the guard. Trim the plastic safety guard to match.

Step 5: Install the tractor end. Align the splines, push the yoke firmly onto the stub shaft until the locking collar clicks into place. Then pull on the shaft hard — if it comes free, the collar didn’t seat. Reconnect and test again before moving on.

Step 6: Connect the implement end. Seat and secure the yoke per the implement’s connection type — splined push-lock, shear bolt, or slip clutch. Snug the retaining pin or bolt to spec.

Step 7: Cycle the hitch and verify the length. Raise the three-point hitch all the way up, then lower it all the way down. Per Tractor Iron’s PTO hookup specs, the shaft must have at least 6 inches of tube overlap at full extension and at least 1 inch of clearance before bottoming out at full hitch raise. If either check fails, the shaft length is wrong — do not run it.

Step 8: Chain the safety guard. Attach the safety chains from the guard to the tractor drawbar and the implement at both ends. This keeps the outer shield stationary while the shaft rotates inside it.

Step 9: Grease before the first engagement. Hit every zerk on the U-joints and the telescoping tubes before you ever turn the key. A Bravex pistol grip grease gun works fine for this, or the Milwaukee M18 cordless if you want to move faster. A LockNLube coupler locks onto the zerk and eliminates the blowoff frustration on tight fittings. Use John Deere HD Lithium Complex Grease or equivalent — a high-pressure lithium complex rated for U-joints. Plan on greasing every 8 hours of operation going forward, as noted in any solid tractor maintenance schedule.

Step 10: Test at idle first. Start the tractor, engage the PTO at low idle, and watch for vibration, wobble, rubbing, or unusual noise. Any of those means something is wrong — disengage immediately and recheck your connections and length before running it under load.

The Safety Part That Can’t Wait Until Next Season

At 540 RPM, that shaft completes 9 full rotations every second. Entanglement happens faster than any person can react — a loose jacket string, a boot lace, a pant leg brushing the shaft. Agricultural safety organizations have been pushing updated PTO guidance hard in the past year because the incidents haven’t stopped. OSHA’s PTO standard requires guarding on all PTO shafts — and the standard exists because unguarded stubs and drivelines are still among the most common causes of serious farm injuries. The most common moment isn’t heavy fieldwork — it’s routine tasks around stationary equipment when someone forgets the shaft is still turning.

If the guard on the old shaft was cracked or missing, a tractor PTO shaft replacement is the right time to fix it — not next season. A new shaft comes with a new guard already included. Install it, chain it off properly at both ends, and don’t run the machine until it’s in place.

Frequently Asked Questions

How do I know what series PTO shaft I need for my tractor? The most important step in any tractor PTO shaft replacement is matching the series to your PTO horsepower — not engine horsepower, which is always higher. Match that number to the series rating on the shaft. For most compact tractors under 45 PTO HP, Series 4 is the standard. If you’re between series, go one size up. You can also measure the U-joint cap diameter on the old shaft — most joints have the series number stamped directly on them.

Can I use an aftermarket PTO shaft instead of OEM? Yes, for most applications. Brands like Weasler, Euro-Cardan, and Bare-Co perform comparably to OEM in real-world use at 40–60% less cost. Where it matters is shock-load work — tillers in rocky ground, brush cutters, augers — where cheap no-name imports tend to fail at the U-joint. Use a named brand, size it correctly, and you don’t need to pay dealer prices.

What happens if the PTO shaft is too short or too long? Too short and the shaft can separate under load or at full hitch extension, which is a serious safety hazard. Too long and it bottoms out when you raise the three-point hitch, putting direct pressure on the tractor PTO output shaft or the implement gearbox — both expensive repairs. Always measure at both extremes of hitch travel before ordering. The extra five minutes upfront is worth it.
